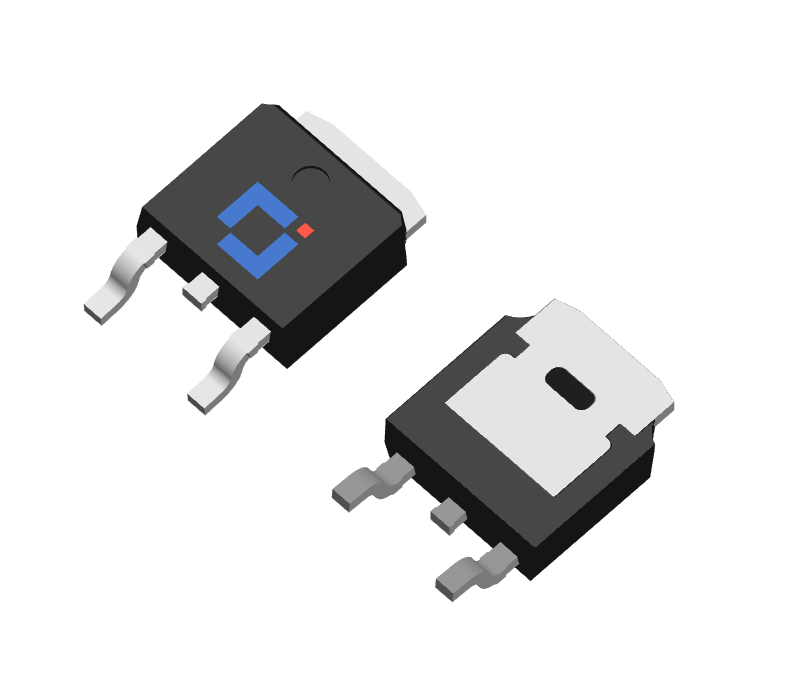

Nch 30V 70A, TO-252-2L, SGT MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJU5R0SN03A | Active | No | 30 | ±20 | 70 | 1.4~2.2 | 4.2 | 5.0 | 6.1 | 8.5 | TO-252-2L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJU5R0SN03A | TO-252-2L | 5R0SN03A | 2.5K/Reel;13 inch | 5K | 25K | MSL3 |
