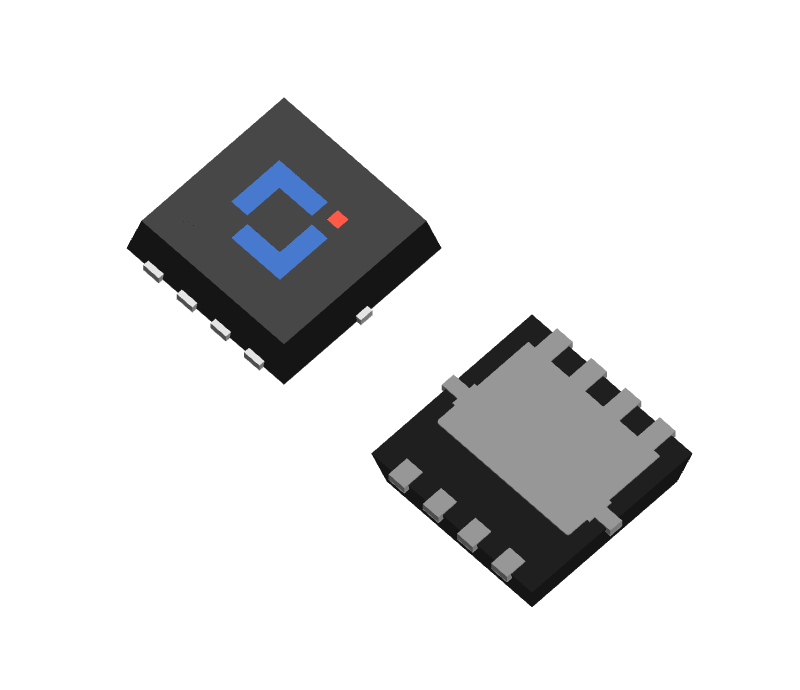

Pch -20V -60A, PDFNWB3.3x3.3-8L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAB9R0P02MJ | Active | No | -20 | ±12 | -60 | -0.55~-1.0 | - | - | 7.5 | 9.0 | PDFNWB3.3x3.3-8L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJAB9R0P02MJ | PDFNWB3.3x3.3-8L | CJAB9R0P02MJ | 5K/Reel;13 inch | 10K | 50K | MSL1 |
